RAM Samsung Tab Active5 Pro & Active4 Pro USB-C Powered Dock Dashboard Mount Kit 1.5" Ball
SKU: RAM-101-225B2-SAM52CP-V7CU
By RAM Mounts
$390.95

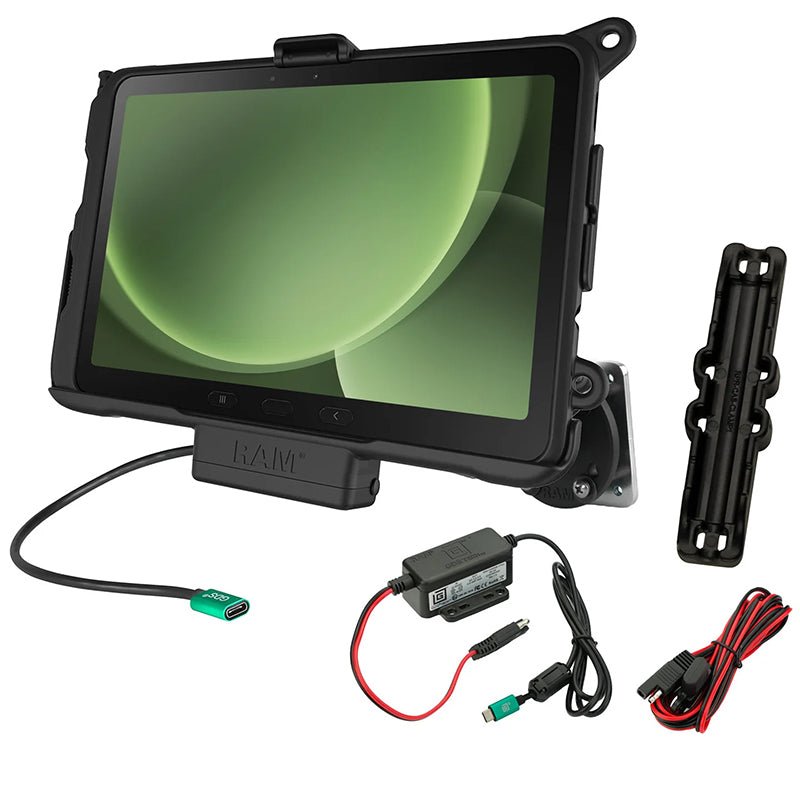

The RAM Powered Dock & Dashboard Mount for Samsung Tab Active5 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet.
The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device.

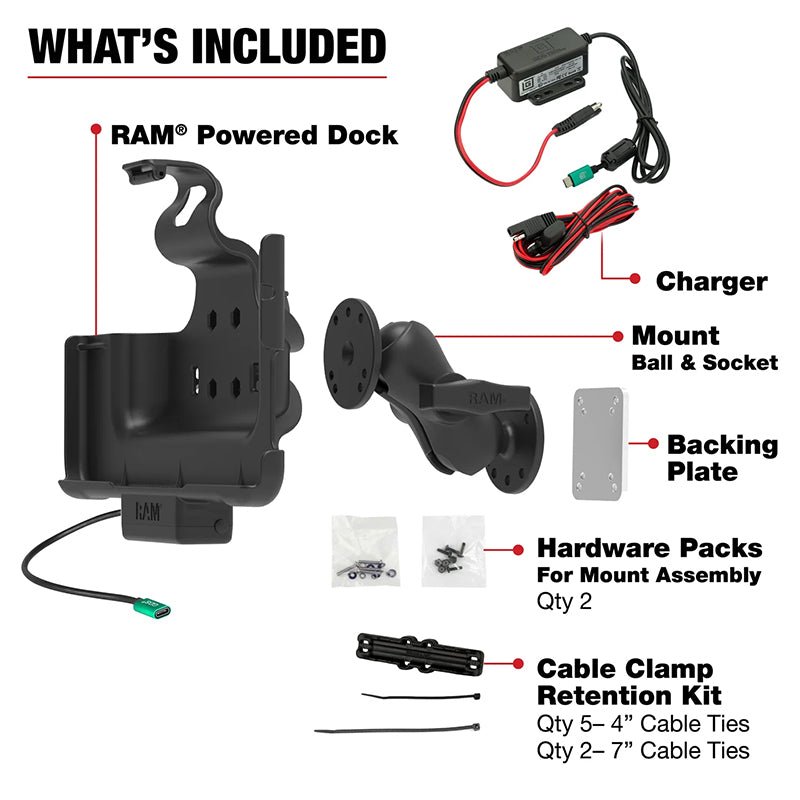

This complete mounting kit includes a 53mm x 66mm (2.10" x 2.60") steel backing plate with #8-32 threaded holes, two 63mm (2.5”) round ball plates, medium length double socket arm, and a GDS modular hardwire charger to provide power to the Galaxy Tab Active5 Pro, Active4 Pro & Active Pro.
RAM's patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.
The steel backing plate provides additional support and strength when mounting the kit on flat dashboard sections of trucks, utes and other vehicles. Simply select the location and mark the holes according to the round plate. Drill through the plastic dashboard surface and place the steel backing plate on the back. Use the included mounting hardware to secure the round plate to the dashboard surface by securing it through the steel plate.

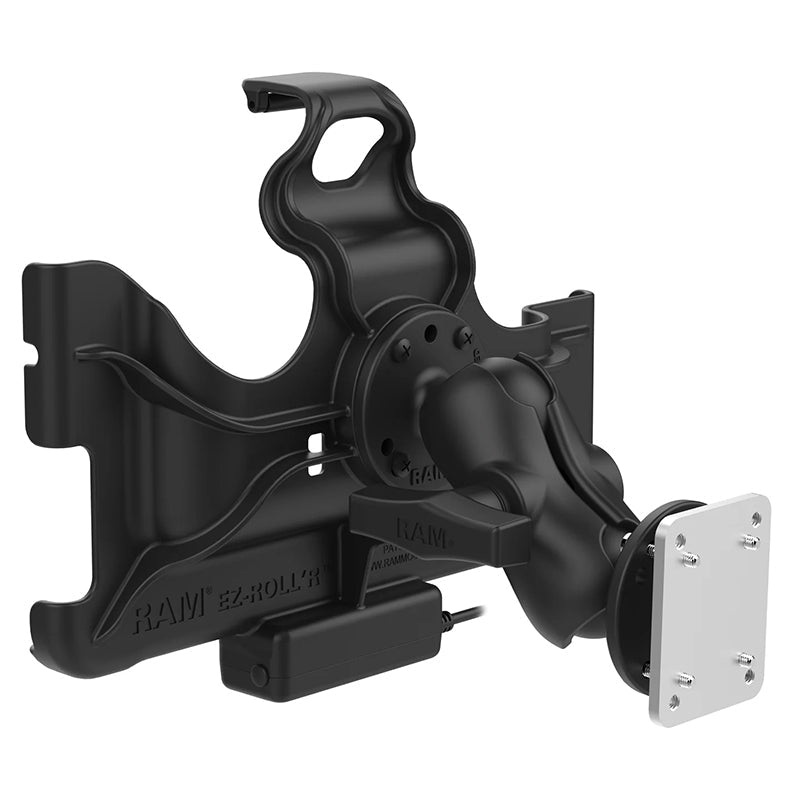

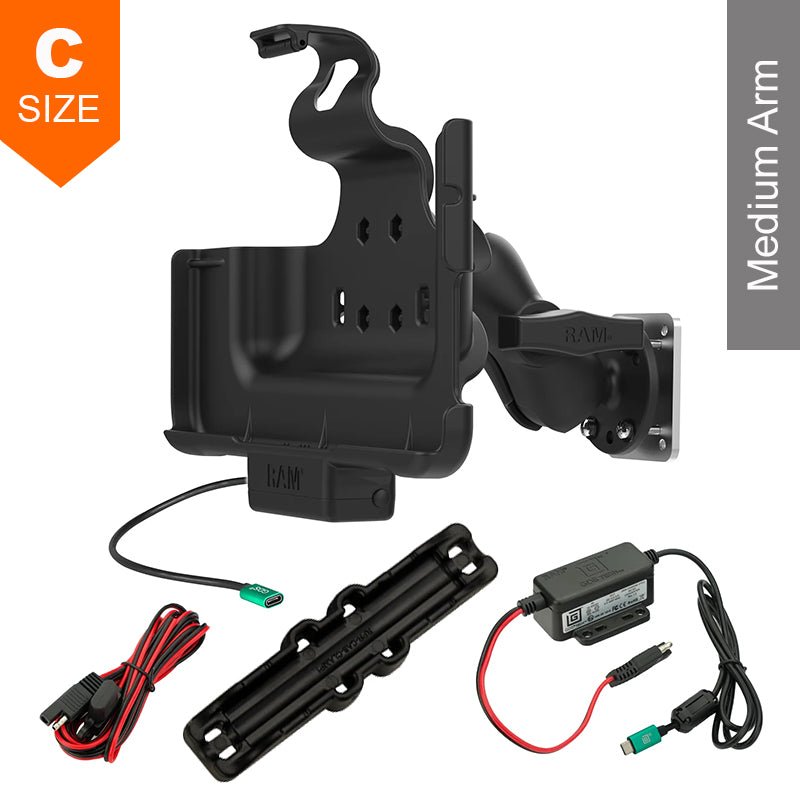

The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.
Samsung Device Compatibility:
• Galaxy Tab Active5 Pro
• Galaxy Tab Active4 Pro
• Galaxy Tab Active Pro
Charging Specifications:
Output Voltage: 5VDC
Power Output: 500mA
Input Connector: USB-C
Input Cable Length: 215mm
Mounting Plate Dimensions:
53mm x 66mm (2.1” x 2.6”)
Material:
Powder Coated Marine Grade Aluminium, High Strength Composite & Steel
Ball Size:
C Size 1.5” Rubber Ball
