RAM Large Tough Claw Medium Arm Round Base Kit 1.5" Ball

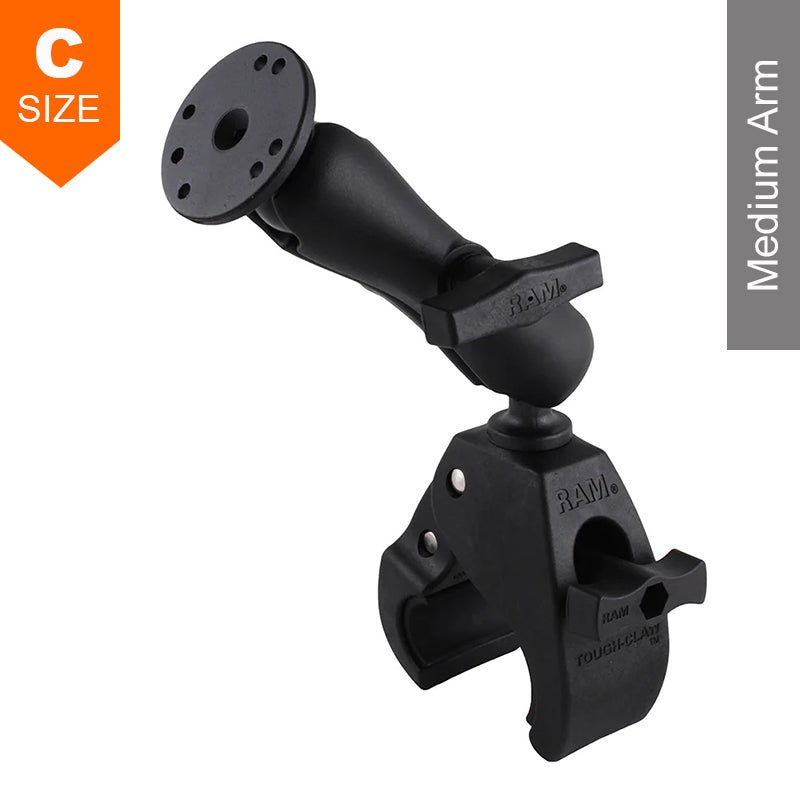

The RAP-401-202U consists of the large Tough-Claw base, MEDIUM double socket arm and round base adapter. The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars.
The Tough-Claw can be clamped on rails from 25mm – 56mm (1" – 2.2") outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third-party cradles.
The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm allowing for almost infinite adjustment and perfect viewing angles.
Clamping Range (Rail/Tube Surfaces):
25mm to 56mm (1" to 2.2")
Clamping Range (Flat Surfaces):
0mm to 56mm (0" to 2.2")
Dimensions:
Overall Height – 292mm (11.5”)
Material:
Powder Coated Marine Grade Aluminium & High Strength Composite
Ball Size:
1.5" Rubber Ball C Size
