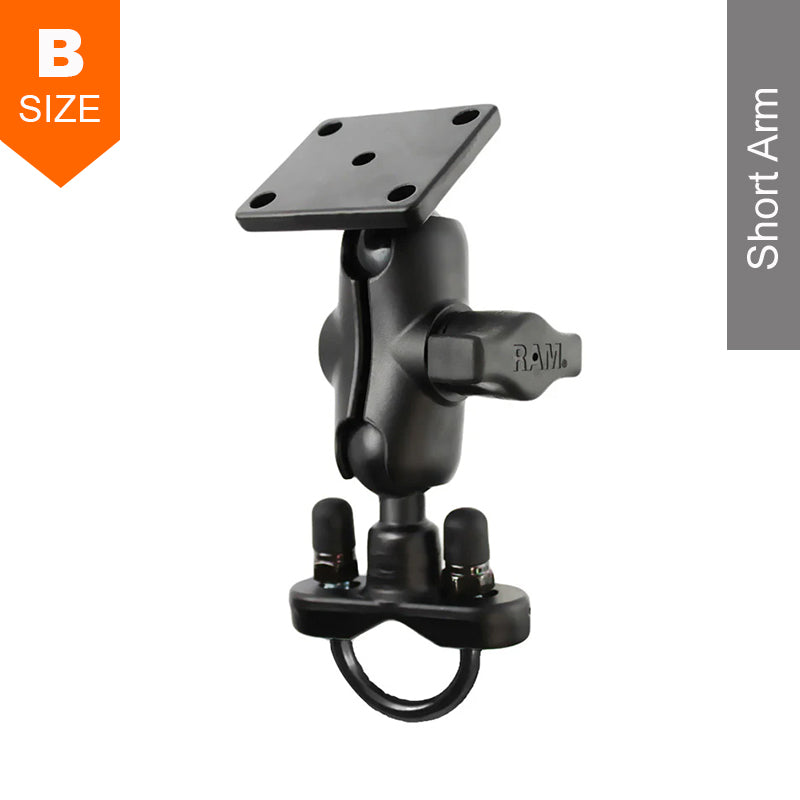

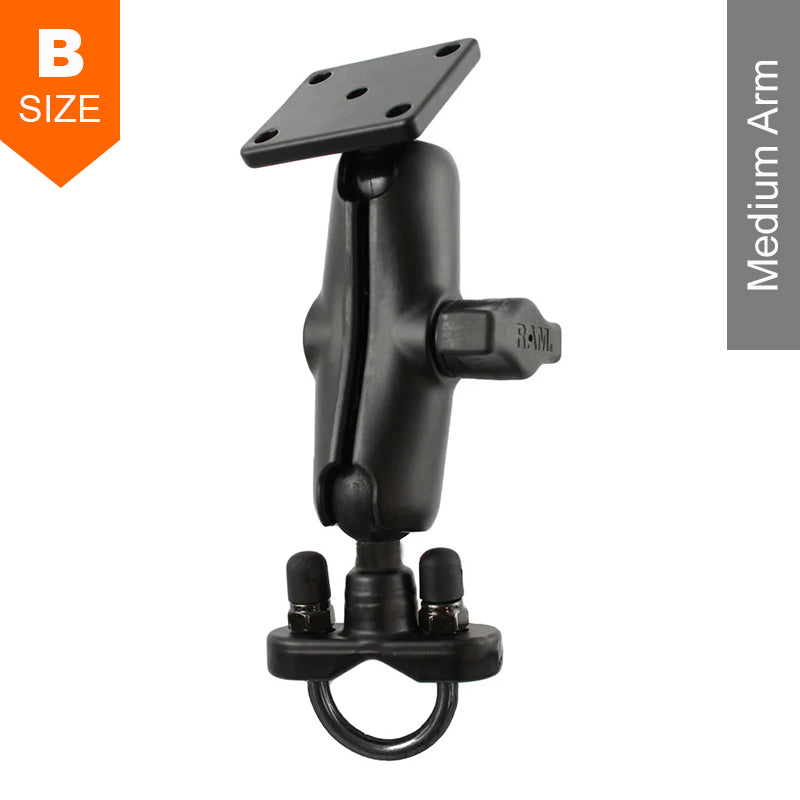

RAM 13mm-32mm U-Bolt Handlebar Rail AMPS Mount Kit 1" Ball
The RAM-B-184U consists of a zinc coated u-bolt base, double socket arm and 50mm x 43mm (2" x 1.7") rectangular base that contains the universal AMPS hole pattern. The rectangular adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to selected Garmin accessory cradles and a large variety of third-party cradles.
Included in this package is hardware that will accommodate rails from 13mm to 32mm (0.50" to 1.25") in diameter. A composite rail adapter can narrow the rail to a minimum width of 13mm (0.5”).
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. A twist of the knob on the double socket allows you to move the mount to your optimum viewing position.
Dimensions:
Accommodates rails from 13mm to 32mm (0.5" to 1.25") in diameter
Hole Pattern:
4-Hole AMPS: 30mm x 38mm (1.181" x 1.496")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
