RAM ATV Side by Side U Bolt Handlebar Rail GoPro Action Camera Mount Kit 1" Ball

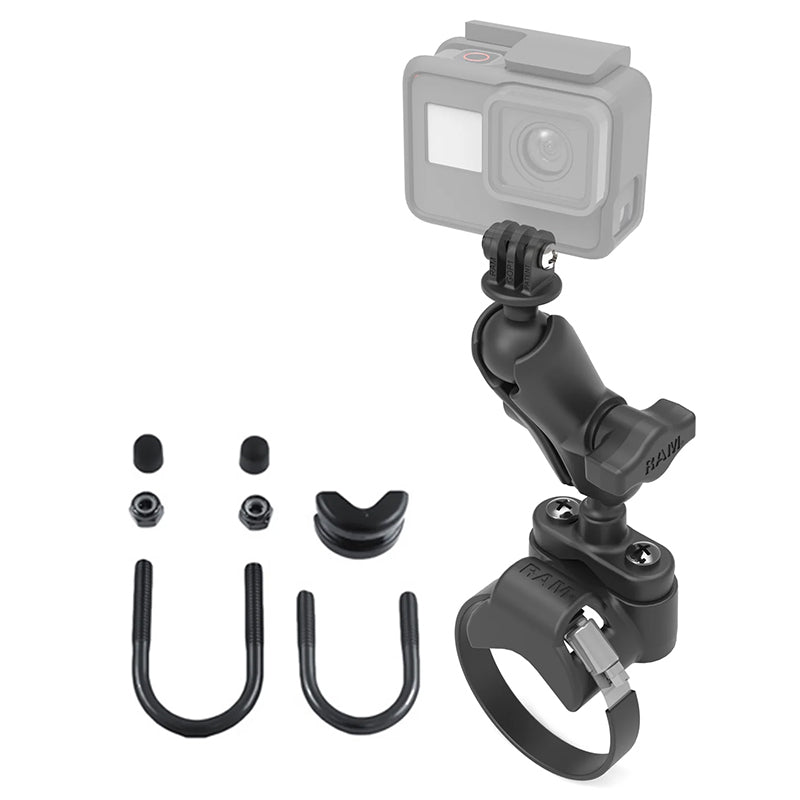

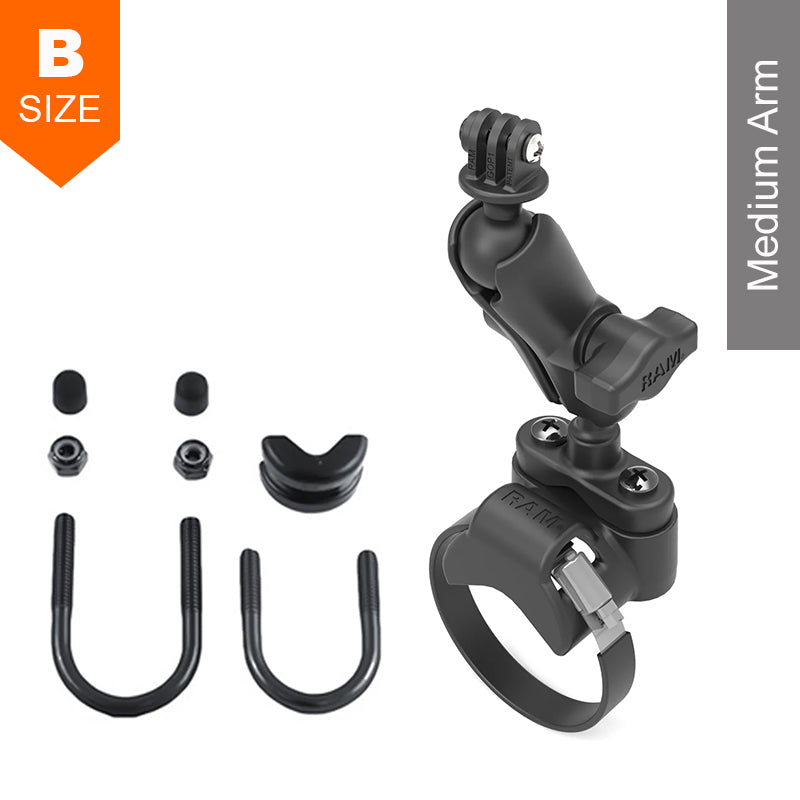

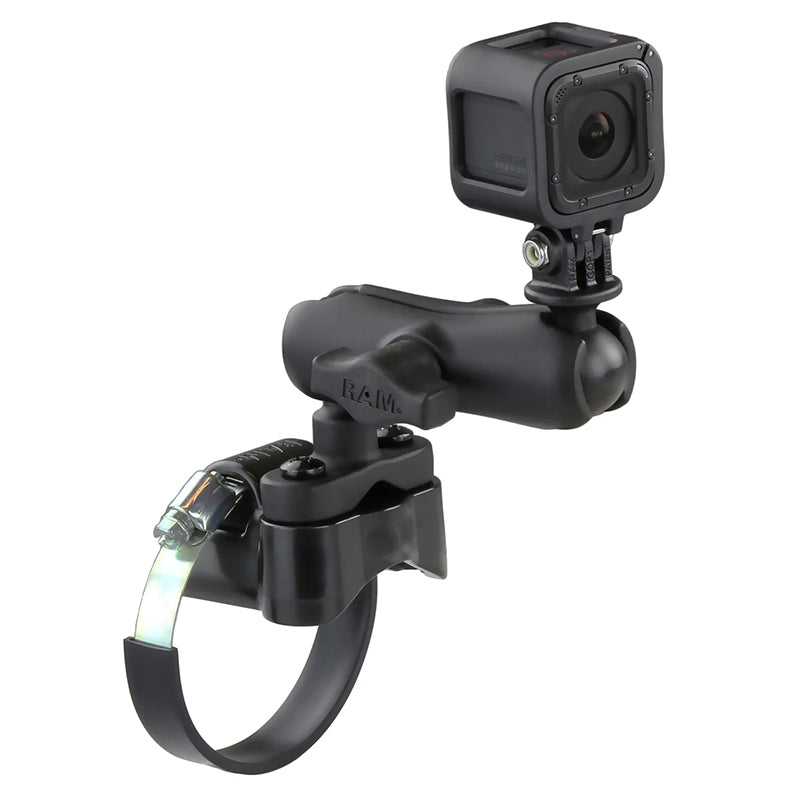

The RAM-B-149Z-2-GOP1U consists of a steel strap base, U-Bolt bases, double socket arm and 1" diameter ball with custom GoPro Hero adapter.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.
The GoPro Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
Clamping Range:
U-Bolt: 13mm to 32mm (0.5" - 1.25") diameter
Strap Clamp: 40mm to 80mm (1.57" - 3.15") diameter
Material:
Marine Grade Powder Coated Aluminium & High Strength Composite
Ball Size:
B Size 1” Rubber Ball
