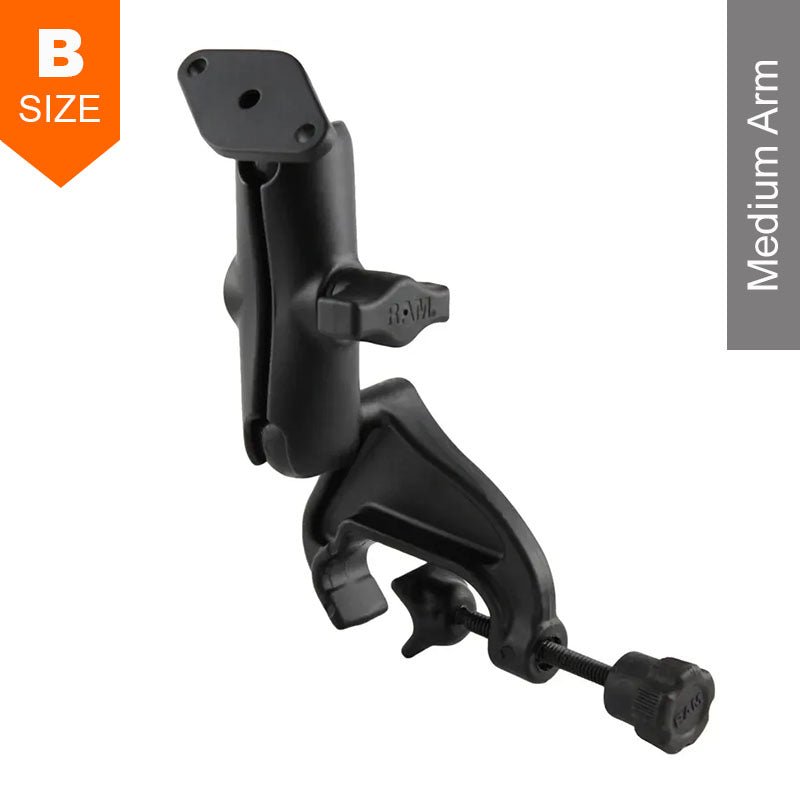

RAM Parallel Yoke Clamp Medium Arm Diamond Base Mount Kit 1" Ball
The RAM-B-121-238U consists of a yoke clamp base, standard length double socket arm and 2.43" x 1.31" diamond base.
The yoke clamp base will fit rails in diameter from 16mm to 32mm (0.625" to 1.25"). The 1" rubber ball is at a right angle to the plane of the mount so that when the base is connected to a rail, the ball sits parallel to the rail.
The diamond base has two holes 48.5mm (1.912") from centre to centre which matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third-party cradles.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Dimensions:
Accommodates rails from 16mm to 32mm (0.625" to 1.25") in diameter
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
