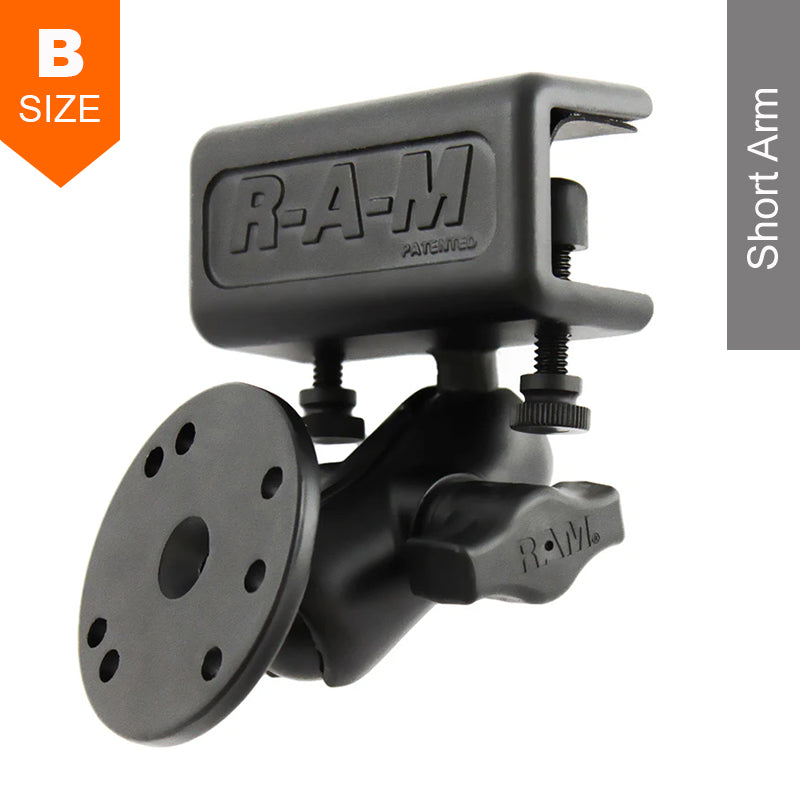

RAM Glare Shield Clamp Short Arm Round Base Kit 1" Ball
The RAM-B-177-202U consists of a glare shield clamp base, short double socket arm and round base adapter.
The RAM-B-177-202U is designed to mount to the lip edge of a flat surface up to 16mm (5/8") thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface.
A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application.
The hole pattern found on the round base adapter will connect to most RAM cradles.
Clamping Range:
Up to 16mm (up to 0.625”)
Hole Pattern:
3-Hole 120 Degree: 46mm (1.812”) Diameter
4-Hole AMPS: 30mm x 38mm (1.181” x 1.496”)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
