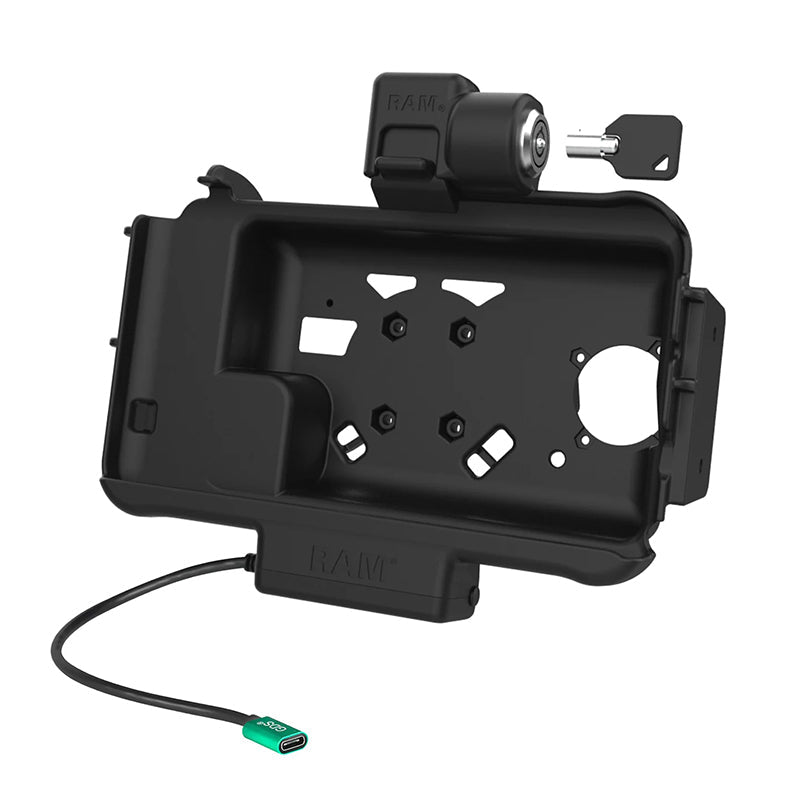

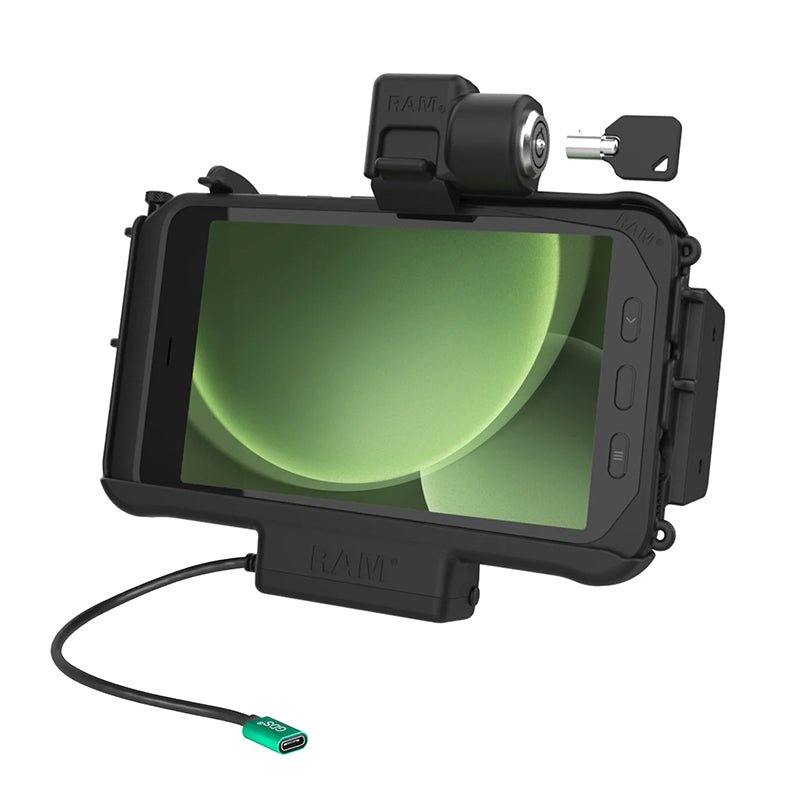

RAM Key Lock USB-C Power Modular Dock for Samsung Tab Active5 & Active3

This key locking RAM EZ-Roll’r power cradle for the Samsung Tab Active5, Tab Active3 and Tab Active 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more.

Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience.

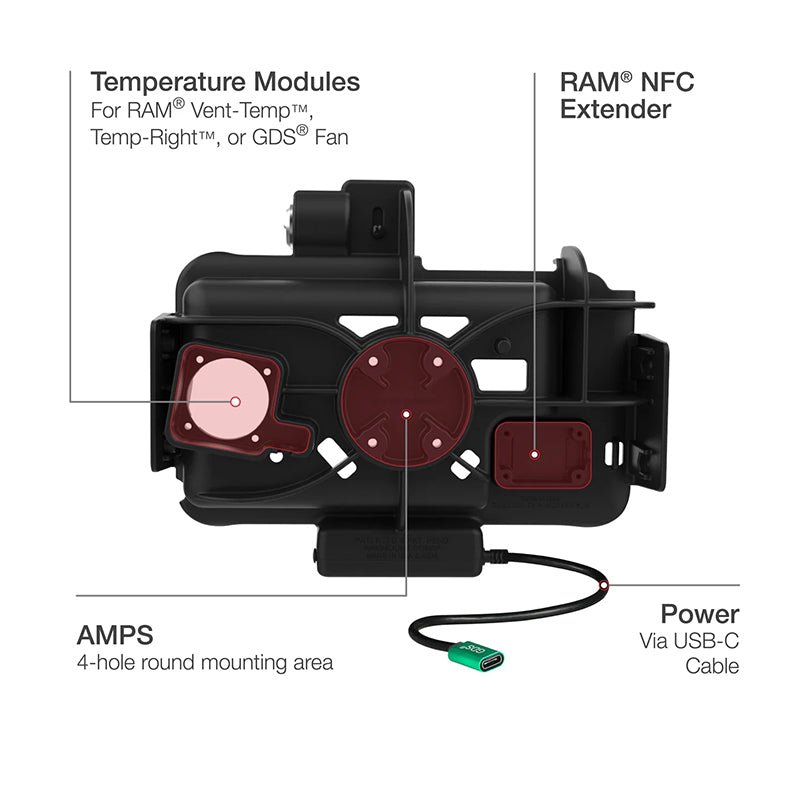

This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments.

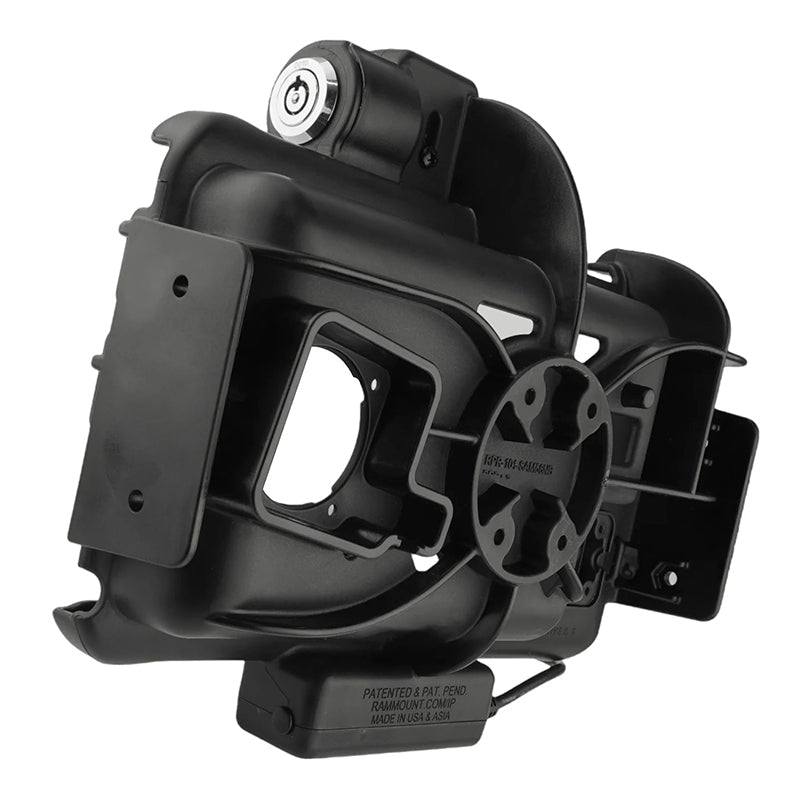

Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern.

Also included is the USB Type-C female pigtail, cable clamp, and zip ties.

Samsung Device Compatibility:
• Galaxy Tab Active5
• Galaxy Tab Active3
• Galaxy Tab Active2

Charging Specifications:
Output Voltage: 5VDC
Power Output: 500mA
Input Connector: USB-C
Input Cable Length: 215mm

Input Connector:
USB Type-C Female

Additional Information:
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.

This dock is not compatible with the GDS Hand-Stand.
