RAM M8 Handlebar Clamp Universal Finger-Grip Mount Kit 1" Ball

The RAM-B-367-UN4U consists of a M8 bolt base, double socket arm and universal Finger Grip cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. This allows for almost infinite adjustment and perfect viewing angles.

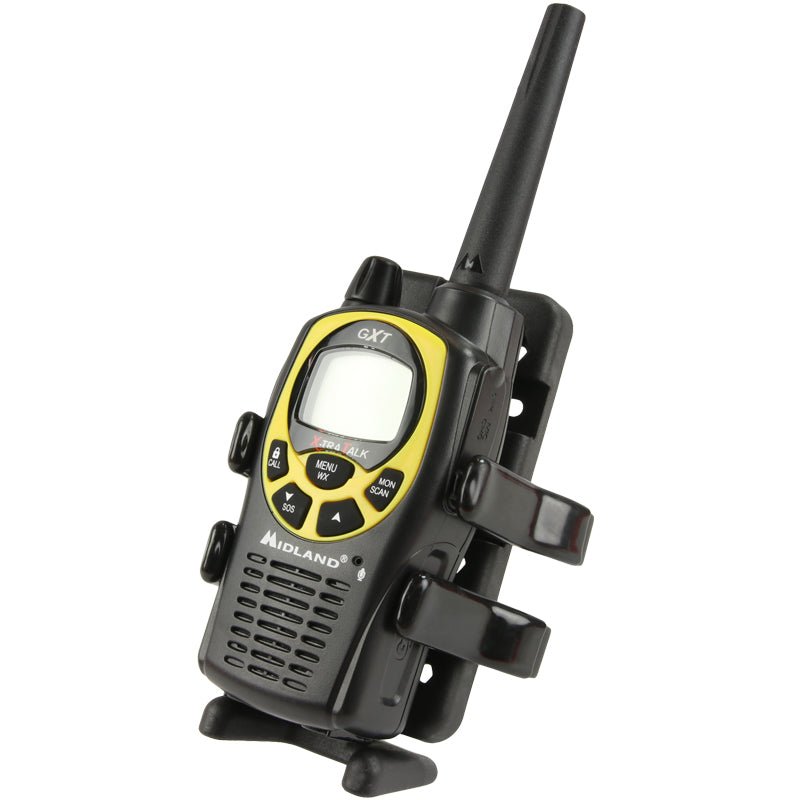

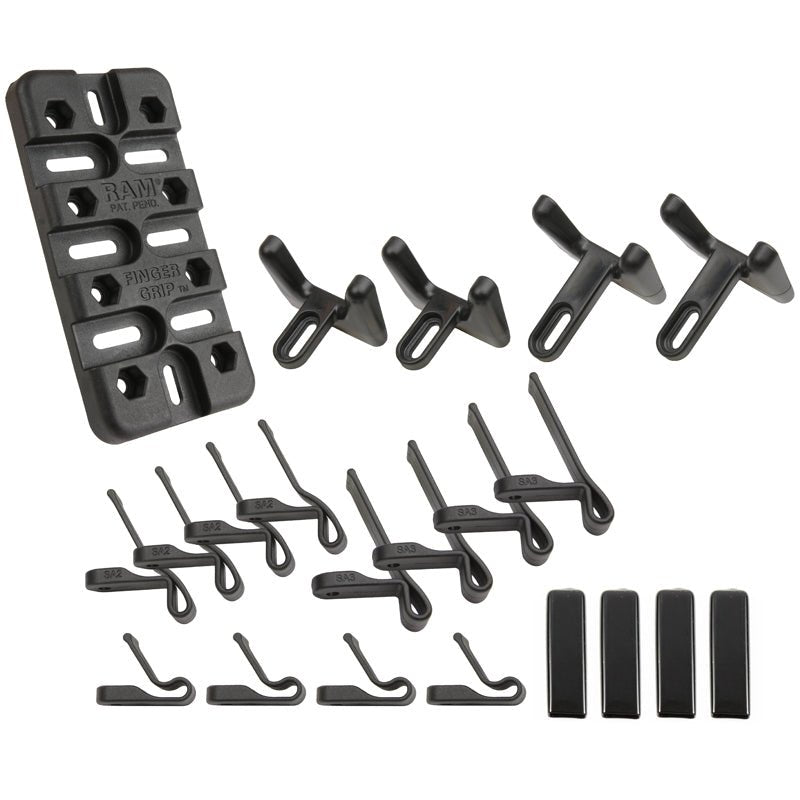

The RAM Composite Universal Finger Grip cradle is designed to hold a large amount of cell phones and electronic devices. The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device.

The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The spine plate contains the universal AMPS and 38mm x 50mm (1.5" x 2") hole patterns.

Compatible motorcycles:
Any motorcycle which employs an 8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.

Included in this kit:
• 1 x M8 x 55mm bolt (1.25 thread pitch)
• 1 x M8 x 60mm bolt (1.25 thread pitch)
• 1 x M8 x 65mm bolt (1.25 thread pitch)

Attachment Point:
Motorcycle handlebar top clamp, any bike that uses an M8 threaded bolt.

Height Dimensions:
Minimum with Top and Bottom Plates: 133mm (5.25")
Maximum with Top and Bottom Plates: 152mm (6.0")
The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:
63mm x 127mm (2.5" x 5") Width x Height

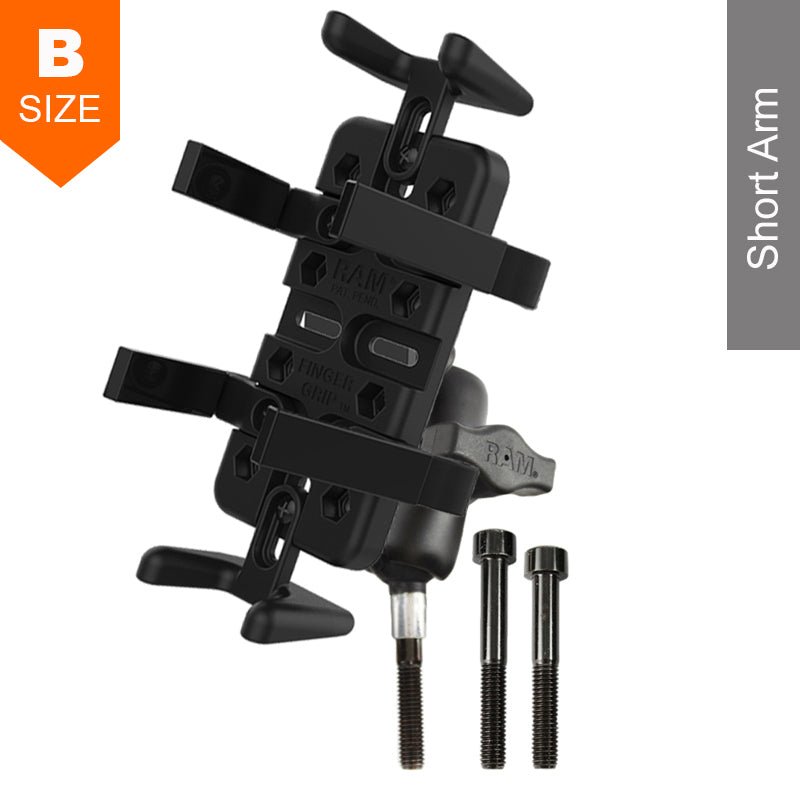

Using Short Arm Side Clamps:
Maximum Depth: 19mm (0.75")
Minimum Width: 32mm (1.25")
Maximum Width: 76mm (3.0")

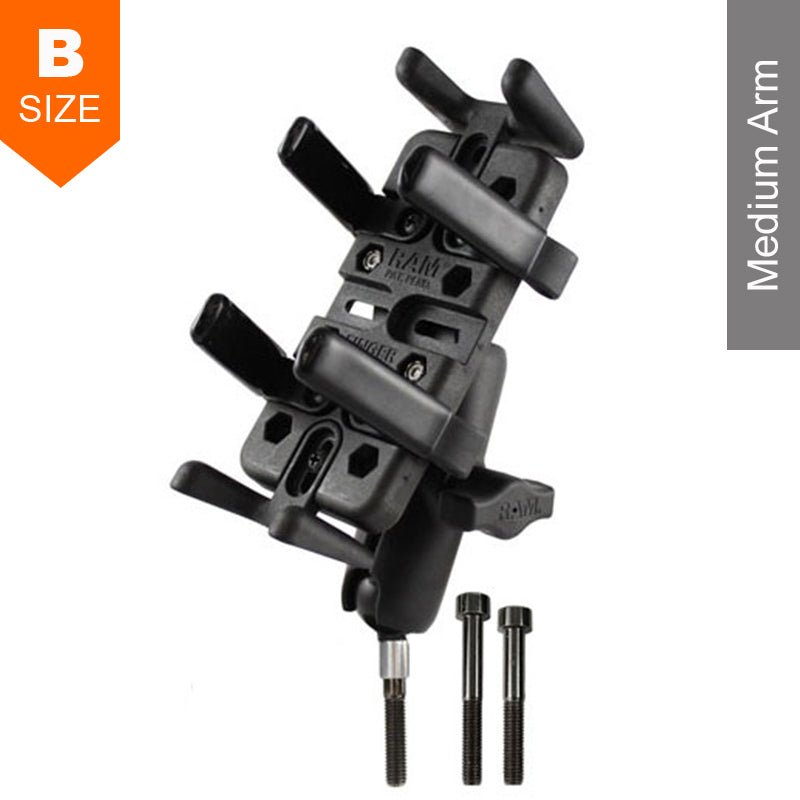

Using Medium Arm Side Clamps:
Maximum Depth: 32mm (1.25")
Minimum Width: 38mm (1.5")
Maximum Width: 89mm (3.5")

Using Long Arm Side Clamps:
Maximum Depth: 40mm (1.6")
Minimum Width: 57mm (2.25")
Maximum Width: 89mm (3.5")

Material:
High Strength Composite and Powder Coated Marine Grade Aluminium

Ball Size:
B Size 1" Rubber Ball

Note:
To determine if these bolts are compatible with your motorcycle measure the original bolt from the motorcycle and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally from a fastener supplier.
