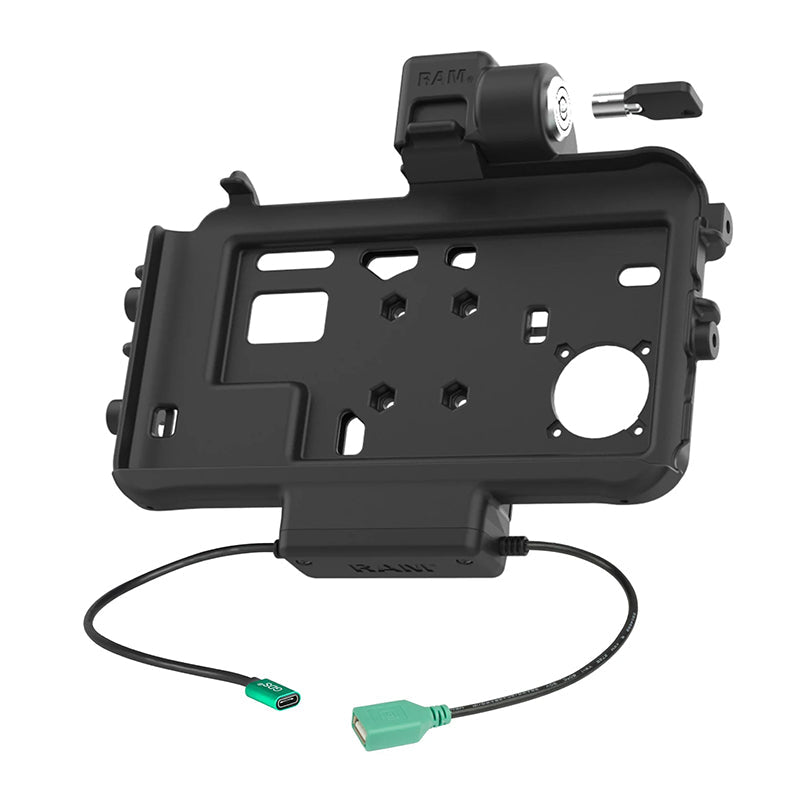

RAM Thin-Dock Key Lock USB-C Power & USB-A Data Dock for Samsung Tab Active5 & 3

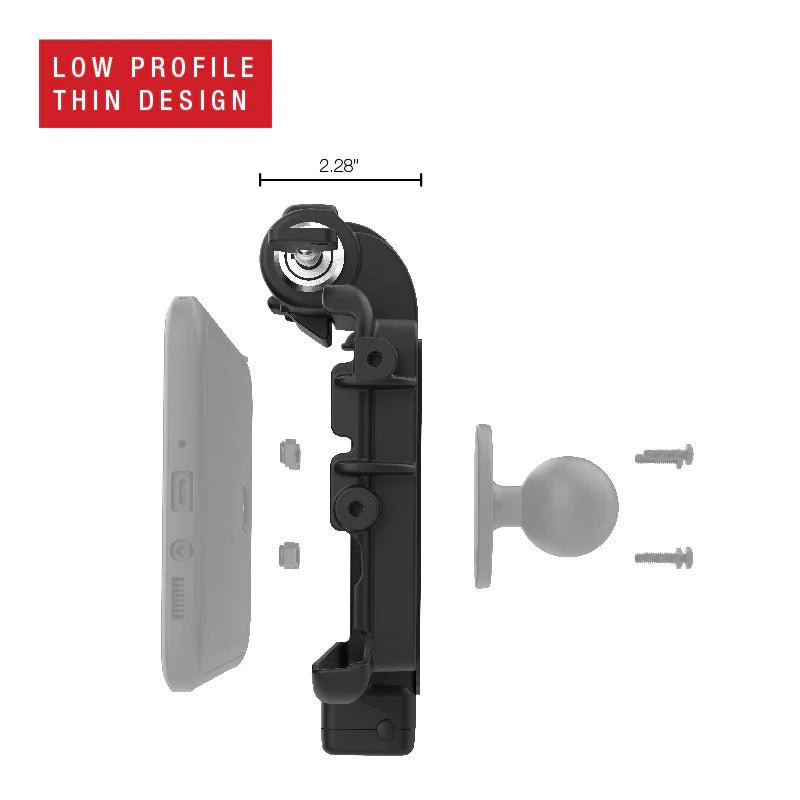

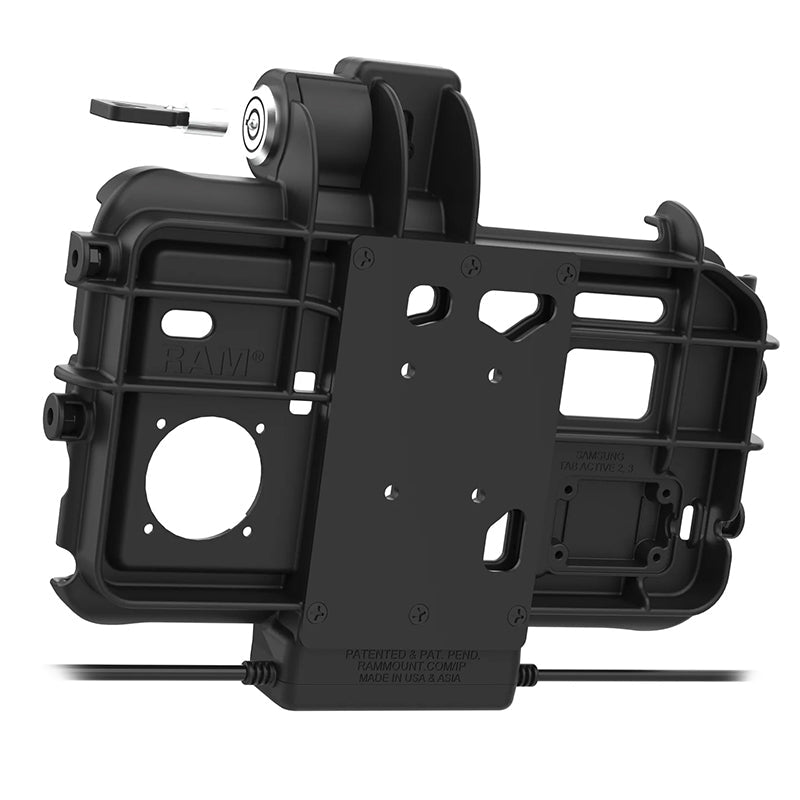

The RAM key lock Thin-Dock Power & Data dock for Samsung Tab Active5 & Tab Active3 offers a slim profile at 5.8cm (2.28") in depth with a metal reinforcement plate for a smaller footprint.

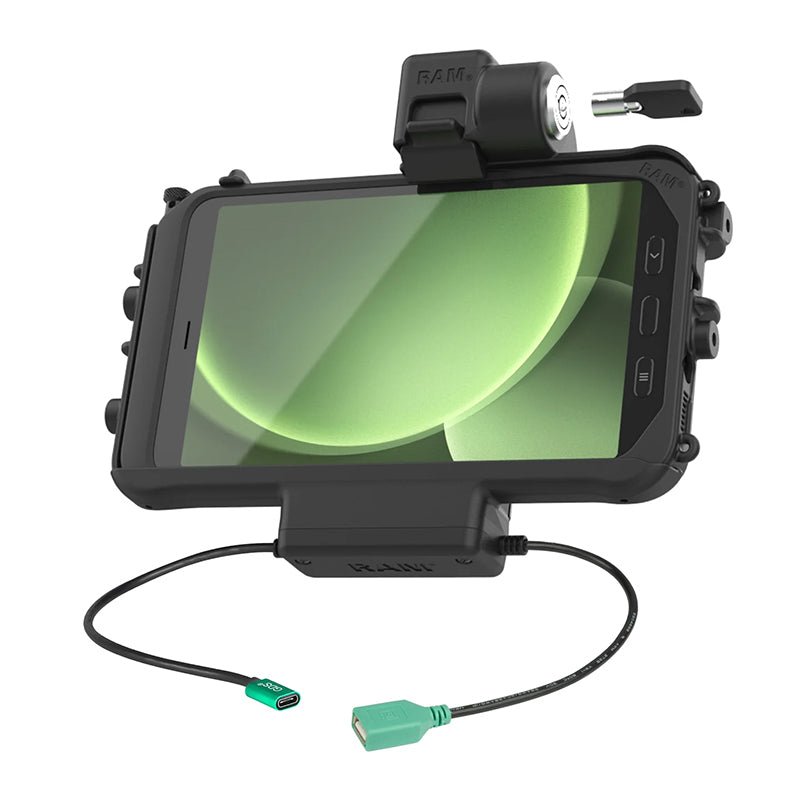

Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts so you can simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more.

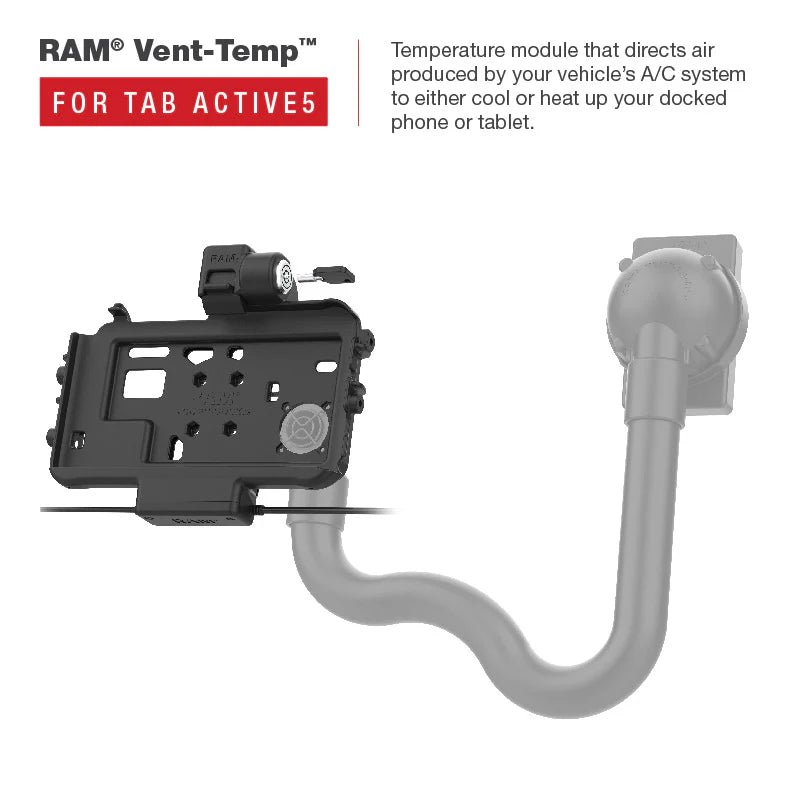

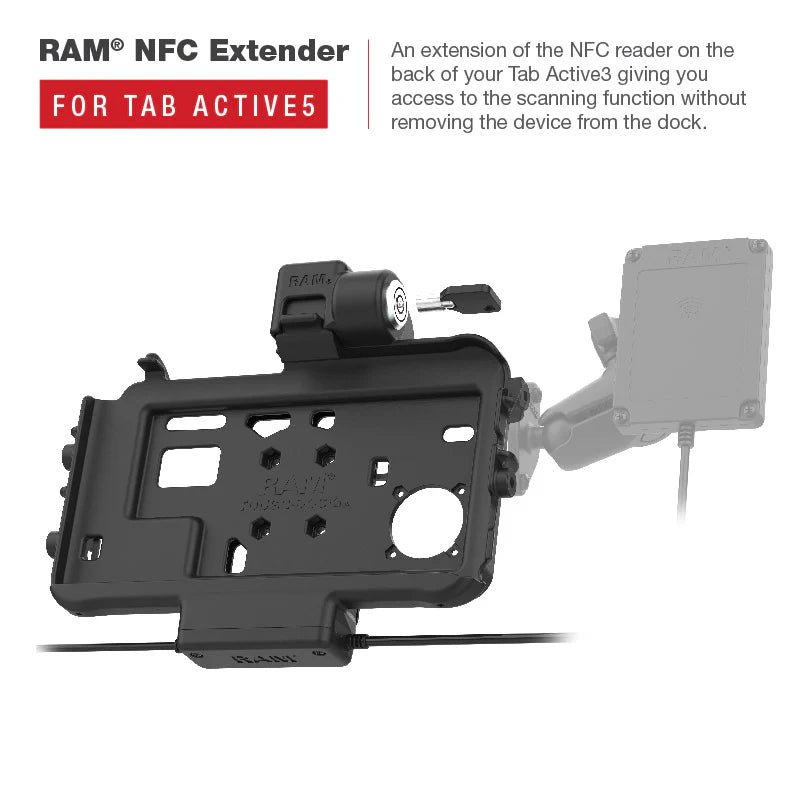

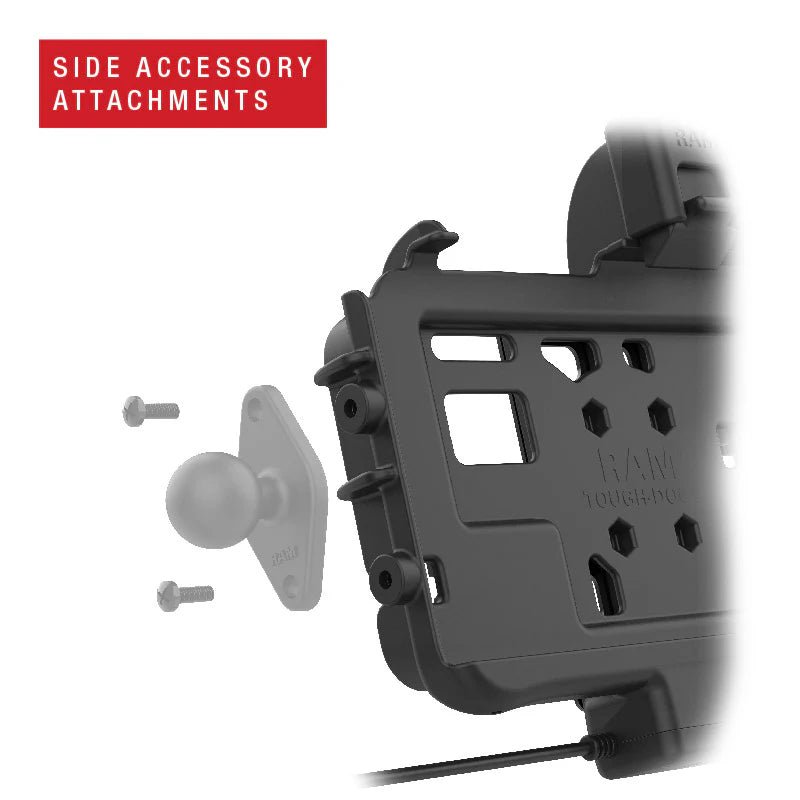

This modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: RAM Vent-Temp, RAM NFC Extender, and side accessory attachments such as a phone mount or barcode scanner.

Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern.

Samsung Device Compatibility:
• Galaxy Tab Active5
• Galaxy Tab Active3

Charging Specifications:
Output Voltage: 5VDC
Power Output: 500mA
Input Connector: USB-C
Input Cable Length: 250mm

Input Connector:
USB Type-C Female

Output Connector:
USB 1.1 Type A

Transfer Speed:
12Mbps

Additional Information:
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.

This dock is not compatible with the GDS Hand-Stand, RAM Temp-Right, or GDS Roto-Mag.
