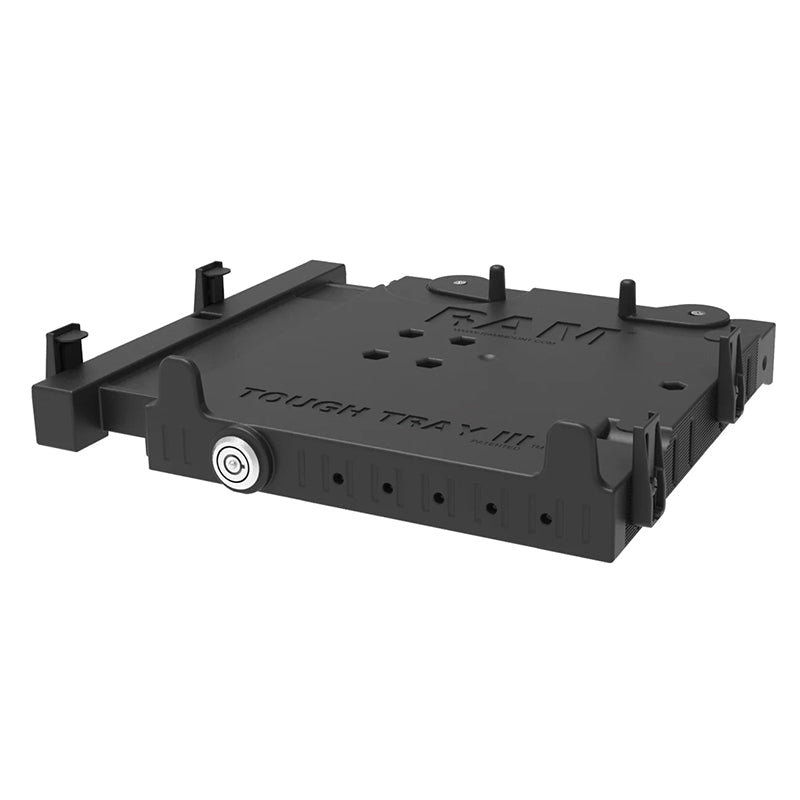

RAM Tough-Tray III Spring Loaded 10" - 17" Laptop Holder
SKU: RAM-234-7
By RAM Mounts
$217.95
The RAM Tough-Tray III Spring Loaded Laptop Tray (RAM-234-7) is a rugged, highly adjustable vehicle and marine laptop mounting solution designed for secure use in mobile workstations, fleets, boats, and off-road environments.
This third-generation Tough-Tray improves on earlier designs with a reduced footprint, enhanced adjustability, and simplified assembly. The spring-loaded cradle expands from 250mm x 380mm (10" to 15") wide, securely accommodating laptops up to 17 inches (measured diagonally).
Adjustable side supports fit laptops up to 48mm (1.875") thick and include two interchangeable support lengths—long supports for rugged laptops, and shorter supports for slim devices. Side supports adjust horizontally to avoid blocking ports and feature foam padding to protect devices from vibration and scuffs.
Swivelling rear supports accommodate laptop depths from 194mm x 270mm (7.625" to 10.625"), ensuring a secure and customised fit. An integrated tubular cam lock provides added security by locking the laptop in place, making this tray ideal for professional and commercial applications.

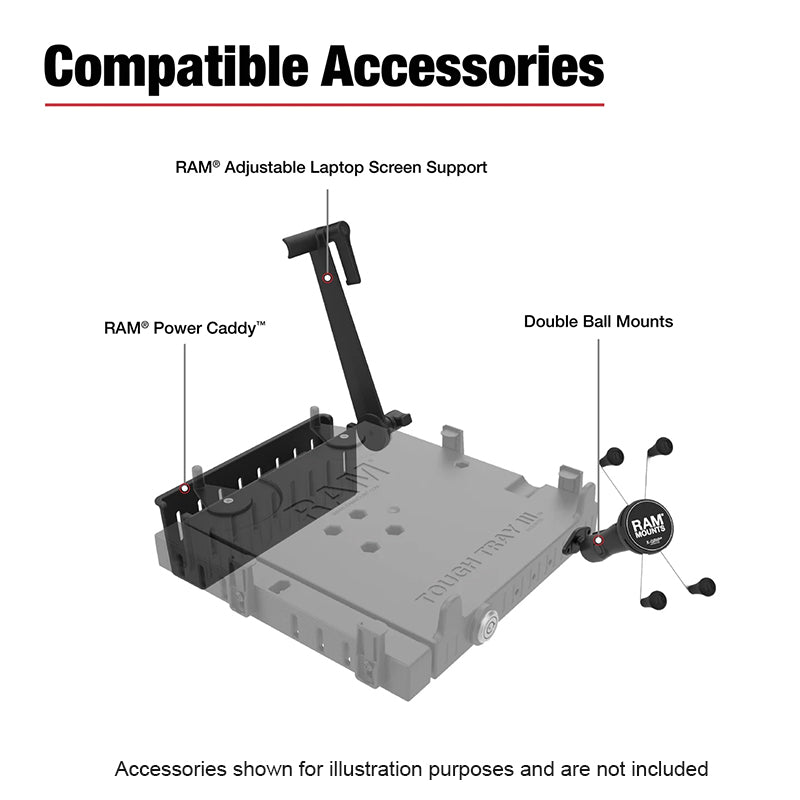

The Tough-Tray III also features a built-in recess for the optional RAM Adjustable Laptop Screen Support (not included), allowing it to nest cleanly when not in use, and is also compatible with the optional RAM Power Caddy (not included) for convenient power management. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners.

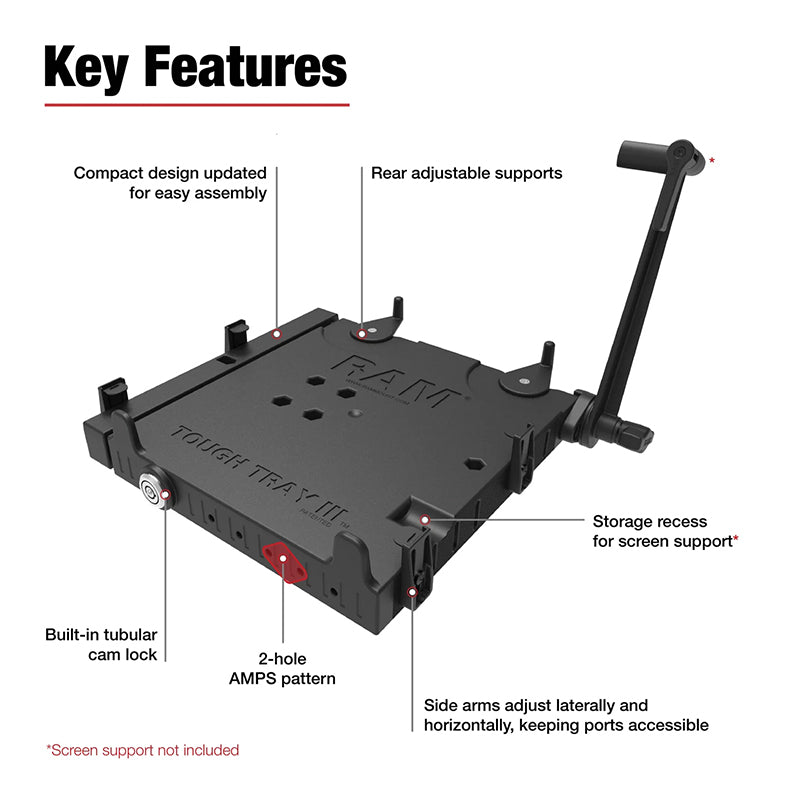

Features:

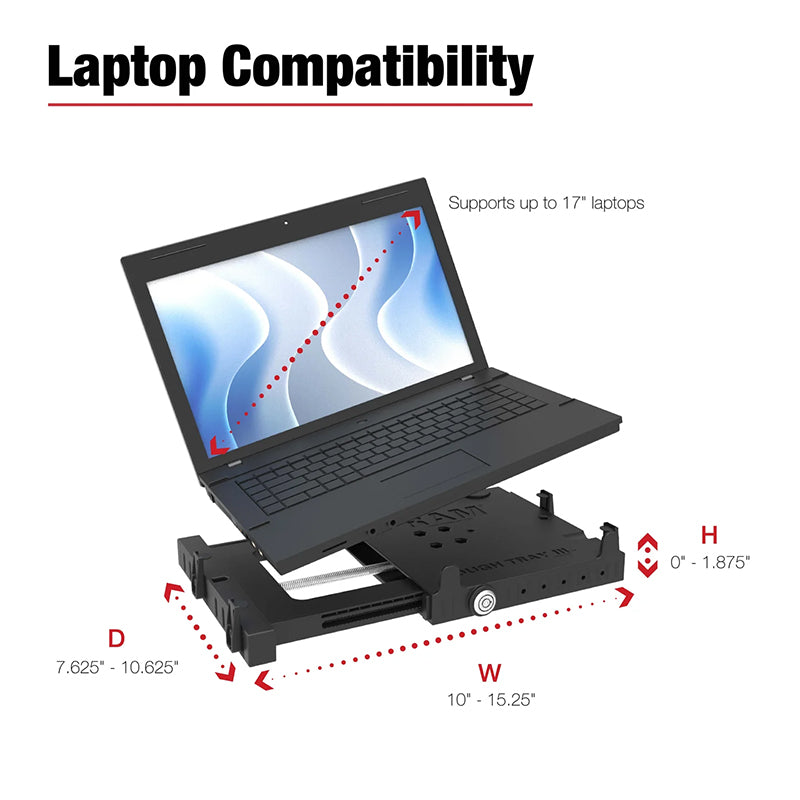

• Spring-loaded universal laptop tray accommodates most 10" to 17" laptops (measured diagonally)
• Adjustable supports keep laptop secure and leave ports accessible
• Compatible with optional RAM Power Caddy and Adjustable Screen Support (both available in our store)
• Made of high-strength composites for durability and reliability in the most demanding environments

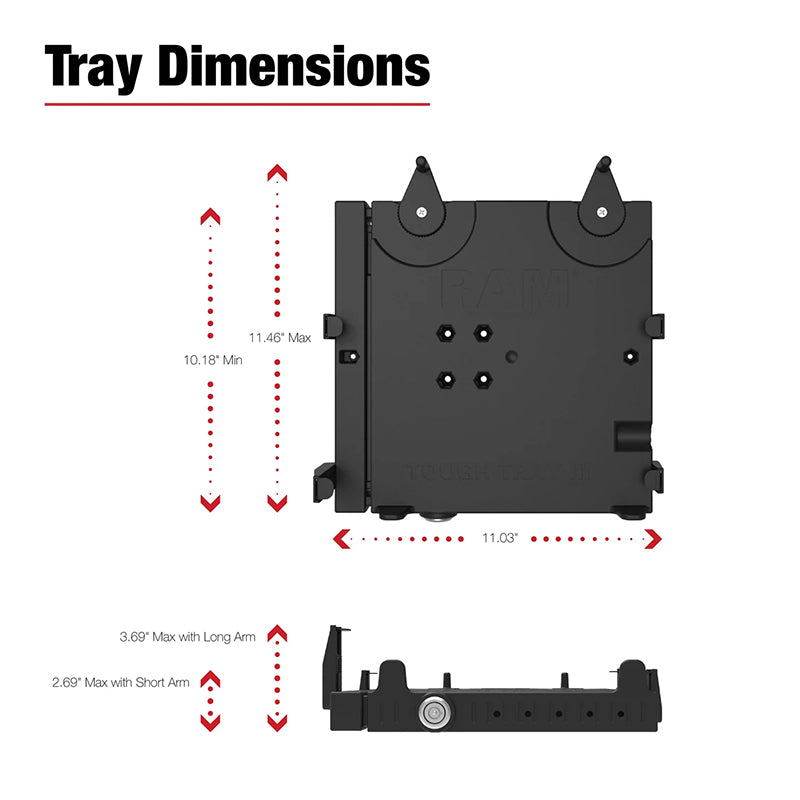

Tough-Tray Dimensions:
Tray Width (Expansion): 250mm to 380mm (10" to 15")
Side Clamp Arm Height: up to 48mm (up to 1.875")
Tray Depth Range: 194mm to 270mm (7.625” to 10.625")
Tray Thickness: 32mm (1.26")
Material:
High Strength Composite
