RAM Tough-Wedge Seat Mount Tab-Tite Holder for 10" - 11" Tablets Kit 1" Ball

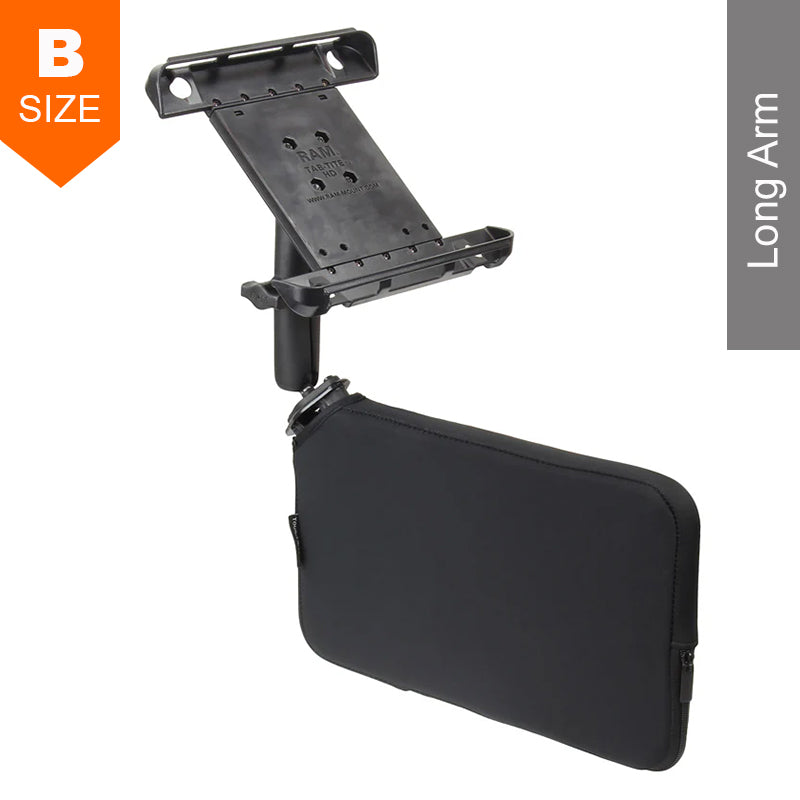

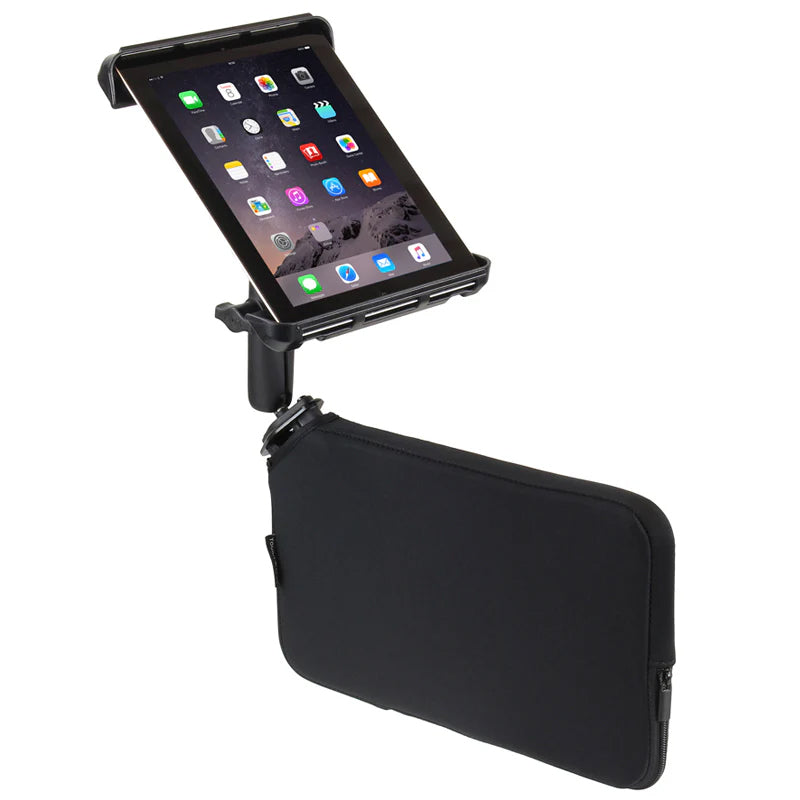

The RAM-B-407-201-C-TAB3U consists of the Tough-Wedge and long length double socket arm with a Tab-Tite spring loaded, quick release tablet cradle.

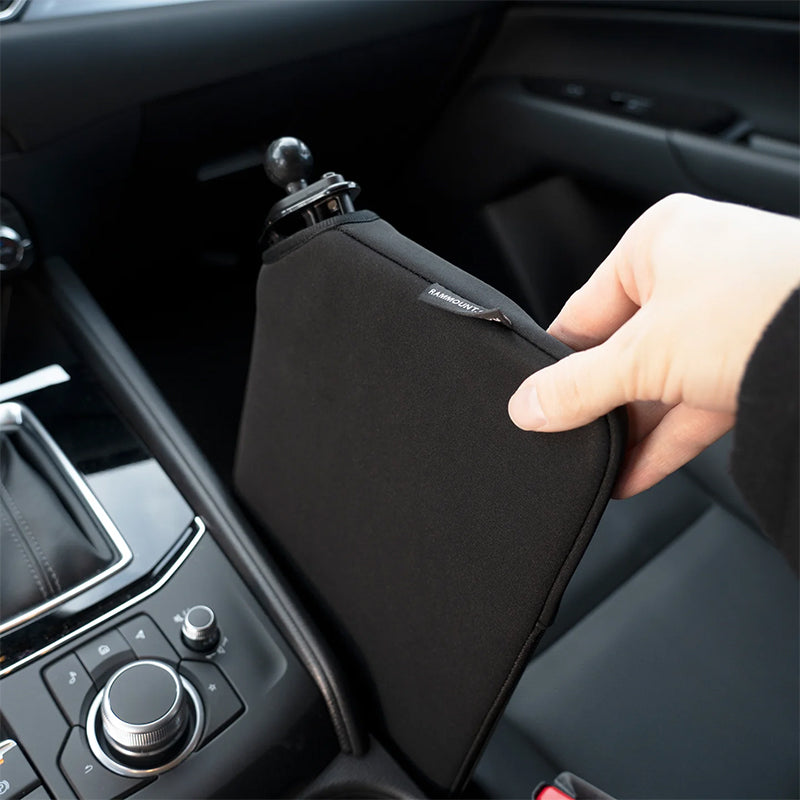

The Tough-Wedge is a seat wedge mount that fits in the gap between the vehicle seat and centre console; allowing easy access and operation of your mobile device. The Tough-Wedge can also be used for back-seat applications, inserted into the pockets located on the back of the front seats.

The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 152mm (6") and will connect to all RAM cradles/adapters with a 1" ball.

The spring-loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.

Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, USB, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your tablet.

The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPS hole pattern.

The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Cradle Dimensions:
Height: 216mm to 282mm (8.5" to 11.125")
Width: 162mm to 197mm (6.38” to 7.75”)
Depth: 3mm to 14mm (0.13" to 0.56")

Wedge Dimensions:
Length: 336mm (13.25")
Height: 209mm (8.25")
Thickness: 25mm (1")

Material:
Powder Coated Marine Grade Aluminium & High Strength Composite

Ball Size:
B Size 1” Rubber Ball
