RAM Twist-Lock Suction Cup Mount Kit 1" Ball

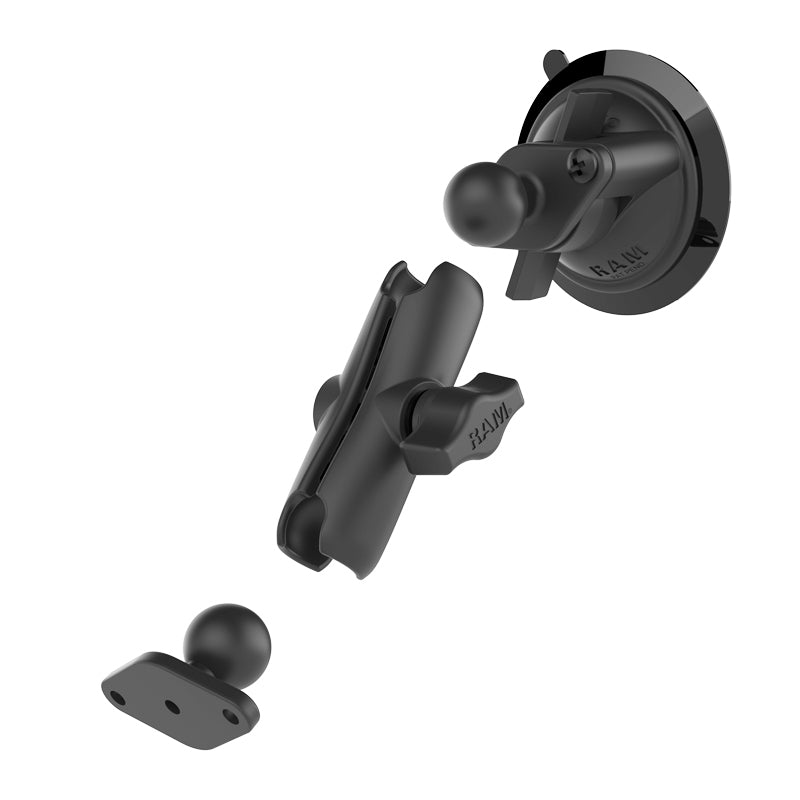

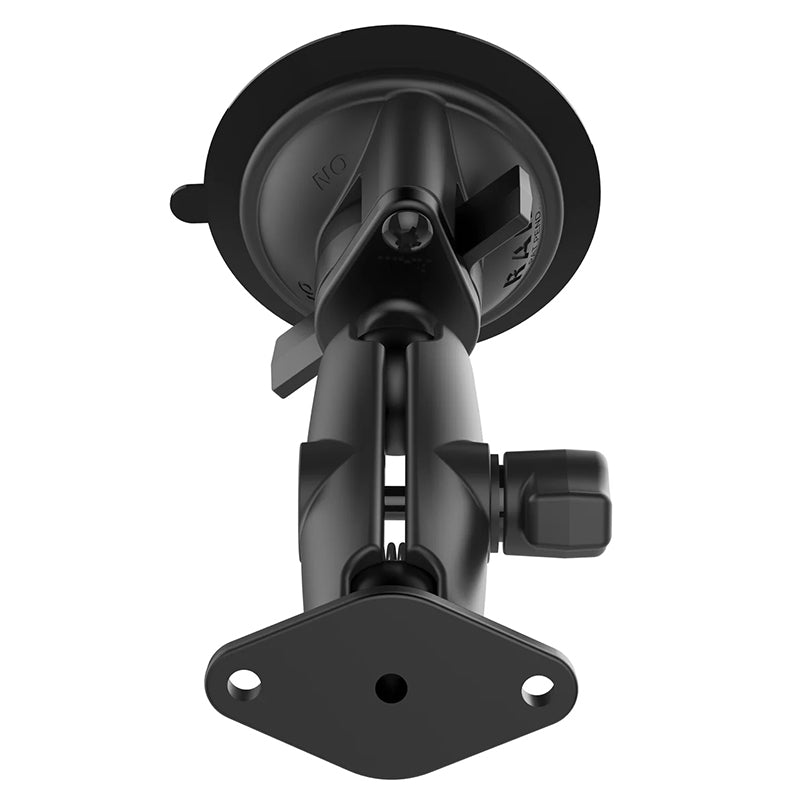

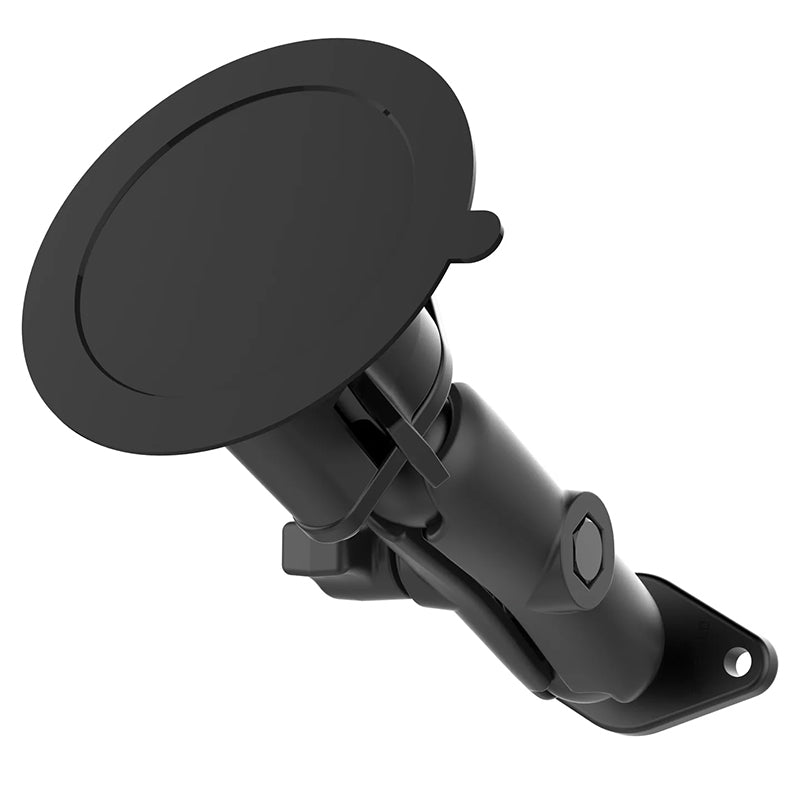

The RAM-B-166U consists of a 84mm (3.3") diameter suction cup twist lock base, double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. A twist of the knob on the double socket allows you to move the mount to your optimum viewing position.

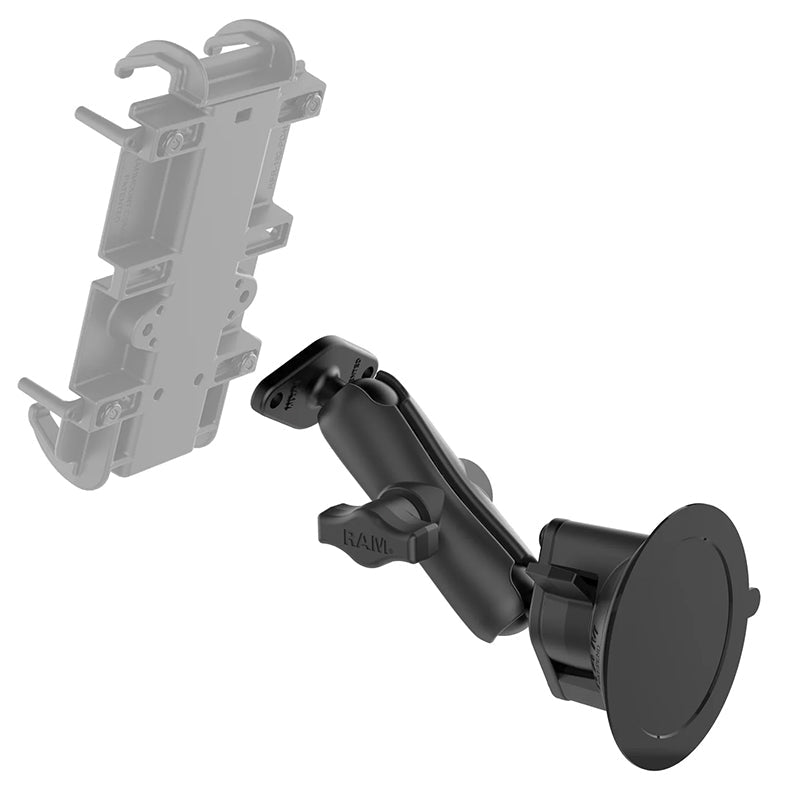

The AMPS hole pattern found on the diamond base adapter will connect to most RAM cradles and 3rd party cradles.
Dimensions:

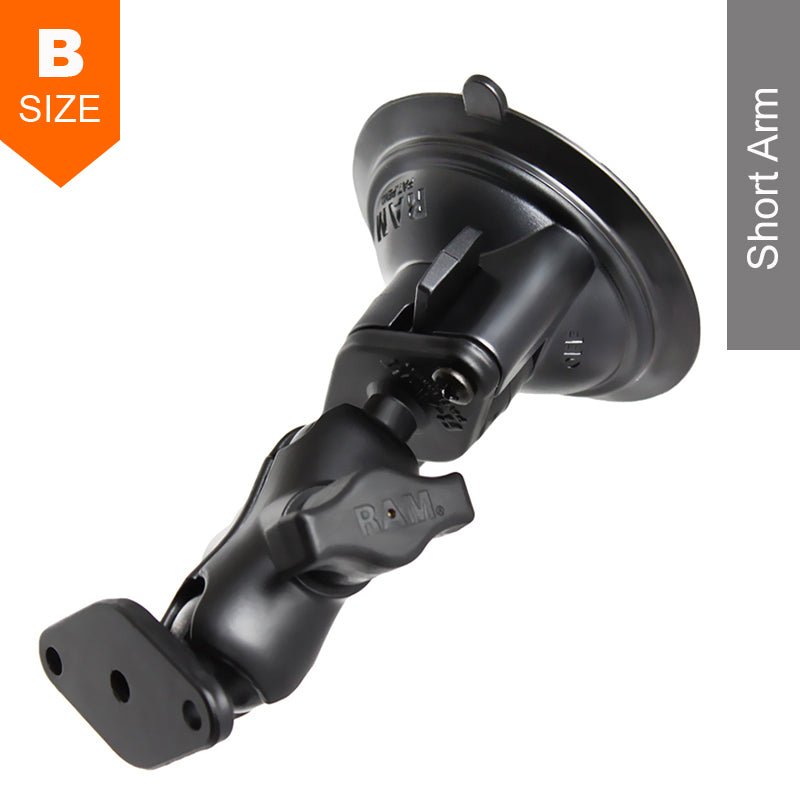

Short Arm | Overall Arm Length: 60mm (2.42") |
Socket-To-Socket Arm Length: 44.5mm (1.75") | |

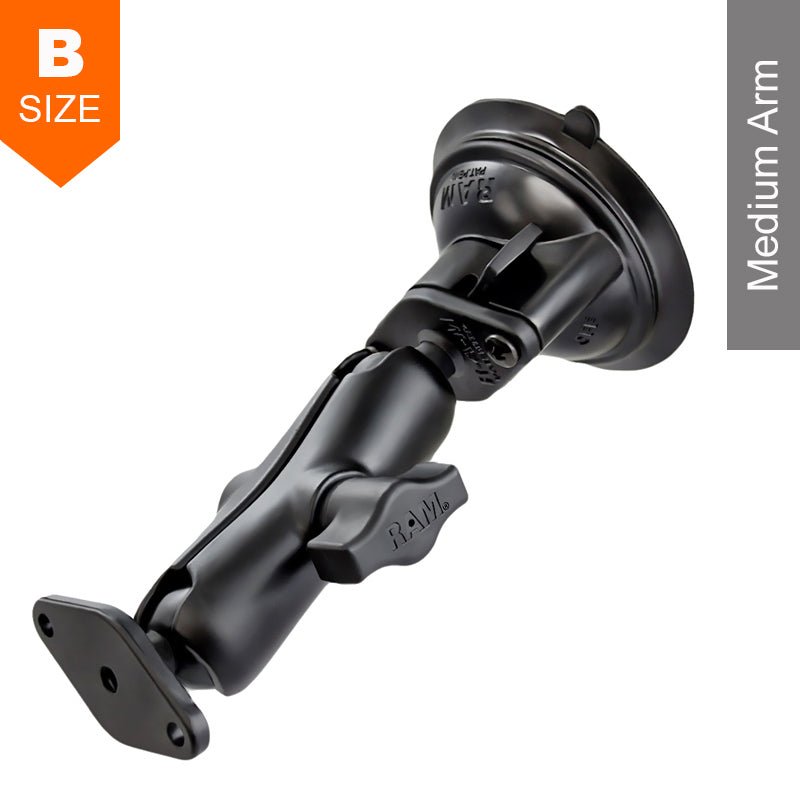

Medium Arm | Overall Arm Length: 95mm (3.73") |
Socket-To-Socket Arm Length: 76mm (3") | |

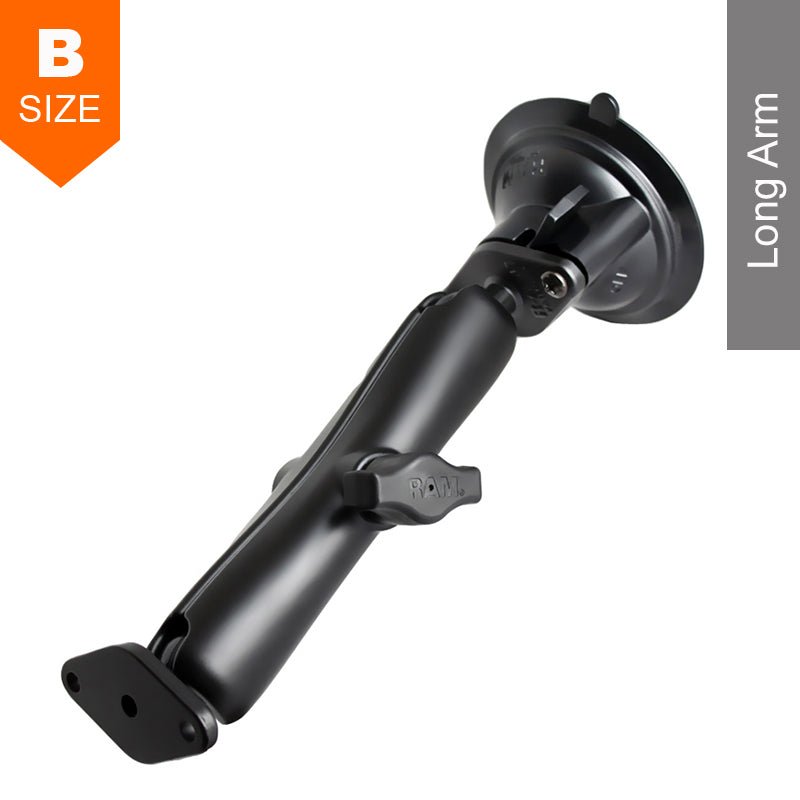

Long Arm | Overall Arm Length: 152mm (6") |
Socket-To-Socket Arm Length: 135mm (5.31") |
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
