RAM Universal 45 - 100mm Post Clamp Round Plate Mount Kit 1.5” Ball

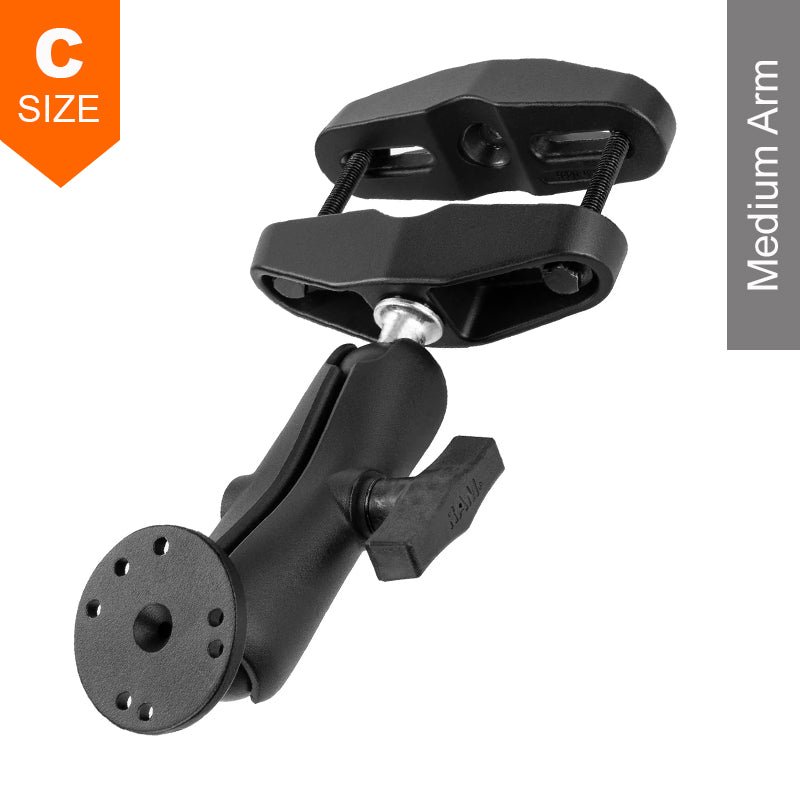

The RAM Universal Post Clamp Mount with Round Plate - C Size Medium Arm (RAM-101U-247) is a mounting solution designed to secure large handheld devices to forklifts.
This kit consists of one double socket C size medium arm, one round plate with C size ball, and one square post clamp.
The square post clamp will wrap around a post with a maximum width of 100mm (4") and is tightened by screwing the two plates together with the included nuts and bolts.
The RAM rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.
Clamp Range:
45mm – 100mm (1.75” – 4”)
Hole Pattern:
4-Hole AMPS: 30mm x 38mm (1.181" x 1.496")
3-Hole 120-Degree: 46mm (1.812") Diameter
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
C Size 1.5" Rubber Ball
